AEGISPEAR with HBC
Bulletproof glass product line
GG line
GLASS+RN+GLASS multi-ply bulletproof glass
The standard of the most generalized bulletproof glass
RN resin bonding, not PVB film bonding.
High visible light transmittance regardless of thickness.
RN resin bonding, not PVB film bonding.
High visible light transmittance regardless of thickness.
GP line
The most ideal bulletproof glass using the only RS resin in the world
GLASS + RS + PC(polycarbonate)
RS resin is a GLASS + PC bonding developed by AEGISPEAR with HBC.
It is a special solution that implements High-performance bulletproof glass that is thin and light at the same level, but exhibits superior performance
RS resin is a GLASS + PC bonding developed by AEGISPEAR with HBC.
It is a special solution that implements High-performance bulletproof glass that is thin and light at the same level, but exhibits superior performance
PP line(bulletproof pannel)
RS Bonding using resin
Bulletproof products according to special environment and use
Bulletproof products according to special environment and use
* PC(polycarbonate) + RS + PC
* PC(polycarbonate) + RS + PMMA(polymethyl methacrylate)
PC + PC Multi-junction possible
* PC(polycarbonate) + RS + PMMA(polymethyl methacrylate)
PC + PC Multi-junction possible
BP line
Explosion-proof glass
GLASS + RS + PC(polycarbonate)
Bonding system according to explosives.
Explosion-proof line that compensates for primary damage and secondary damage from explosives when explosives explode.
Explosion-proof line that compensates for primary damage and secondary damage from explosives when explosives explode.
Heating Glass
Heating function + EMI shielding function
Technical bulletproof glass that complements environmental issues, quick customization according to specifications.
Combining bulletproof performance with heat and EMI shielding performance.
Combining bulletproof performance with heat and EMI shielding performance.

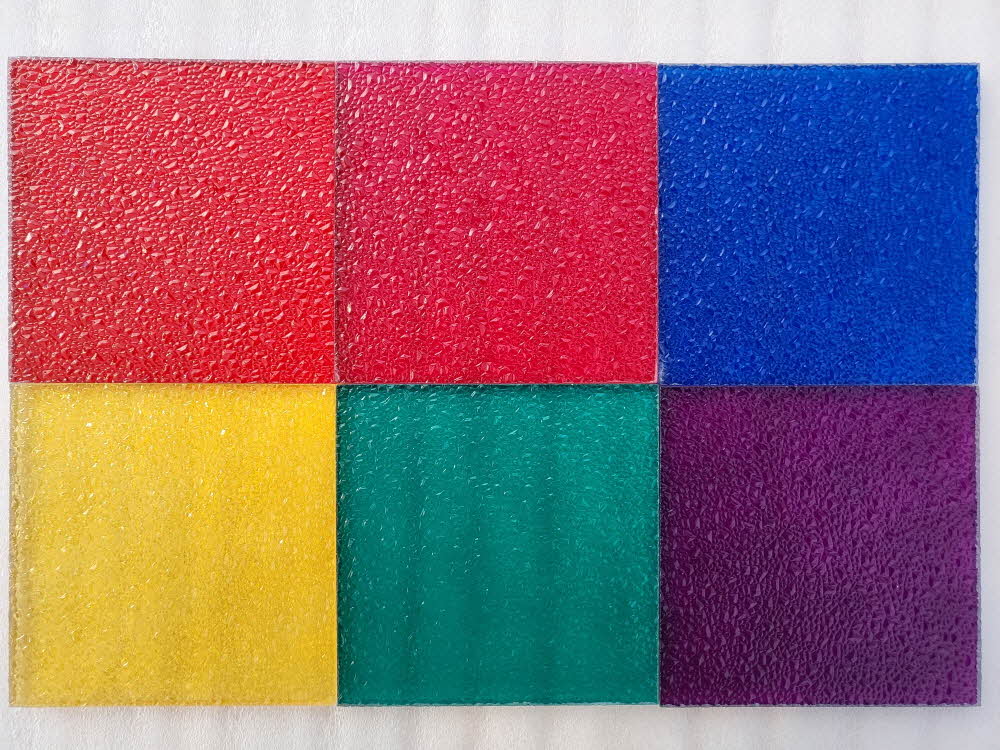

COLOR GLASS /
COLOR BULLETPROOF GLASS
+ View
SKY WALK
+ View
Bulletproof laminated glass for
preventing water pressure
+ View
Heat shield glass
(fireproof glass)
+ View
AEGISPEAR with HBC
Bulletproof Glass Technology
AEGISPEAR with HBC Bulletproof glass produces the strongest and safest bulletproof glass with our own proven technology.
AEGISPEAR with HBC Technology
GLASS+RS+POLYCARBONATE multiple junction
KEY 1
RS Resin was developed by AEGISPEAR with HBC.
It is a special solution that realizes GLASS + PC bonding
KEY 2
Outstanding performance compared to general G+G multi-joint strength.
KEY 3
Possession of unrivaled technology that cannot compete with the same
KEY 4
High chemical resistance/water resistance/heat resistance/cold resistance. It has durability. High, not limited by thickness Realize visible light transmittance.
‘RS Resin’
The only bulletproof glass production
The only bulletproof glass production
Capable of mass production
Facility line establishment
NIJ UL752
International report certification

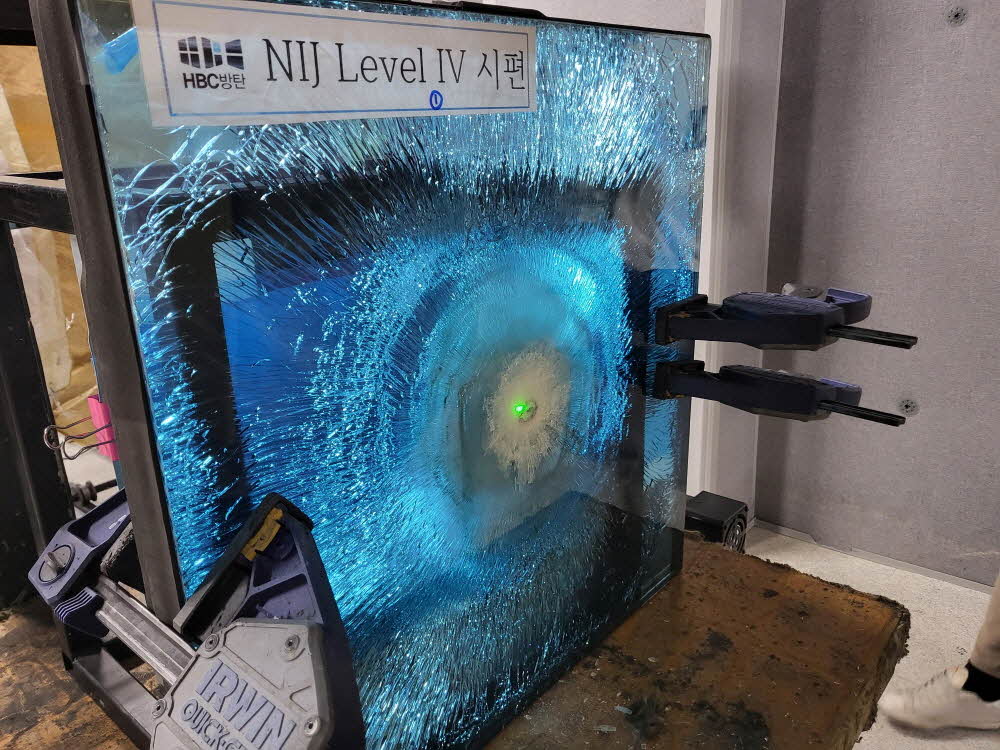

multiple guns and bullets shooting test complete
own KNOW-HOW Establishment of rapid production response
with continuous development Possession of related patents
RS Resing Technology
AEGISPEAR with HBC
RS Resin Curing by AEGISPEAR with HBC
- No concerns about internal fragmentation due to glass + PC bonding
- High productivity / small quantity production possible
- Securing high transparency (over 83%)
- Applicable to curved shape
- Fair pricing possible
- NIJ LEVEL Ⅲ correspondence 38mm
AEGISPEAR with HBC
Bulletproof glass standard specifications
Product position : AEGISPEAR GP LINE ( RS RESIN applied joint)
UL 752 ( LEVEL1 ~ 8 )
± 3mm
LEVEL 1
TOTAL 14mm
1) G5+G5+PC3
2) G10+PC3
2) G10+PC3
LEVEL 2
TOTAL 17mm
1) G6+G6+PC5
2) G10+PC5
2) G10+PC5
LEVEL 3
TOTAL 18mm
1) G5+G5+G5+PC3
2) G6+G6+PC5
2) G6+G6+PC5
LEVEL 4
TOTAL 40mm
1) G6+G6+PC3+G6+G6+G6+PC3
2) G8+G8+G8+G8+PC5
2) G8+G8+G8+G8+PC5
LEVEL 5
TOTAL 40mm
1) G6+G6+G6+G6+G6+PC3
2) G8+G8+G8+G8+PC5
2) G8+G8+G8+G8+PC5
LEVEL 6
TOTAL 20mm
1) G5+G5+G5+PC3
2) G6+G6+PC5
2) G6+G6+PC5
LEVEL 7
TOTAL 35mm
1) G6+G6+PC3+G6+G6+PC3
2) G8+G8+G8+G8+PC3
2) G8+G8+G8+G8+PC3
LEVEL 8
TOTAL 50mm
1) G8+G8+G8+PC3+G8+G8+PC3
AEGISPEAR with HBC

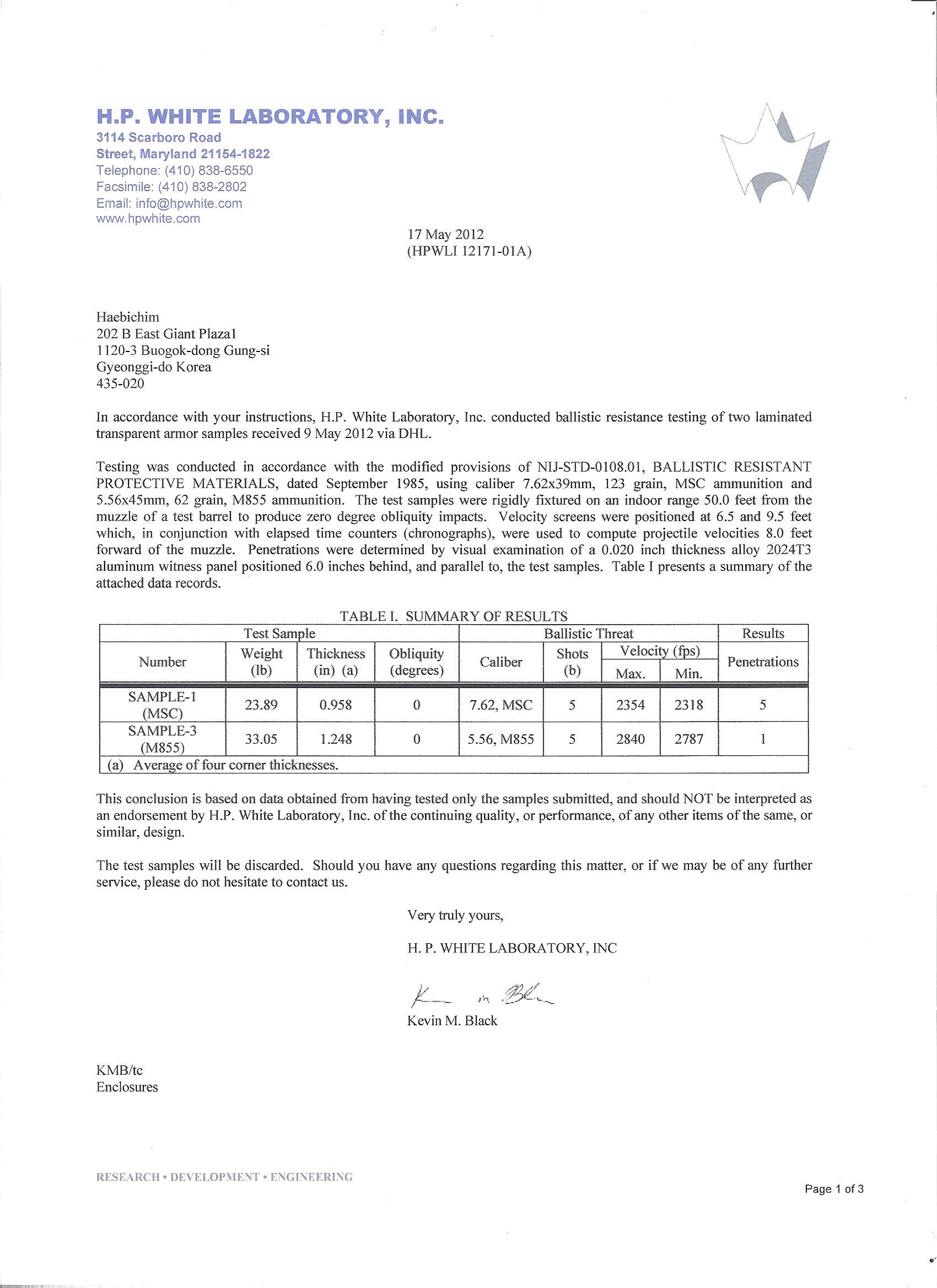

Bulletproof glass test report
AEGISPEAR with HBC
OUR WORKS
KOREA & GLOBAL
- GLOBAL – ASIA “K” NATION VIP bulletproof glass – GP
- GLOBAL – “T” NATION VIP Train – GP
- GLOBAL – ASIA “INDONESIA” anti-terrorism shield bulletproof glass – GP
- GLOBAL – ASIA “THAILAND” the National Police Agency riot control vehicle – GP
- GLOBAL – ASIA “INDONESIA” armored car bulletproof glass – GP
- K-9 self-propelled gun observation window bulletproof glass – GP
- K55 Armored vehicle observation window bulletproof glass – GP

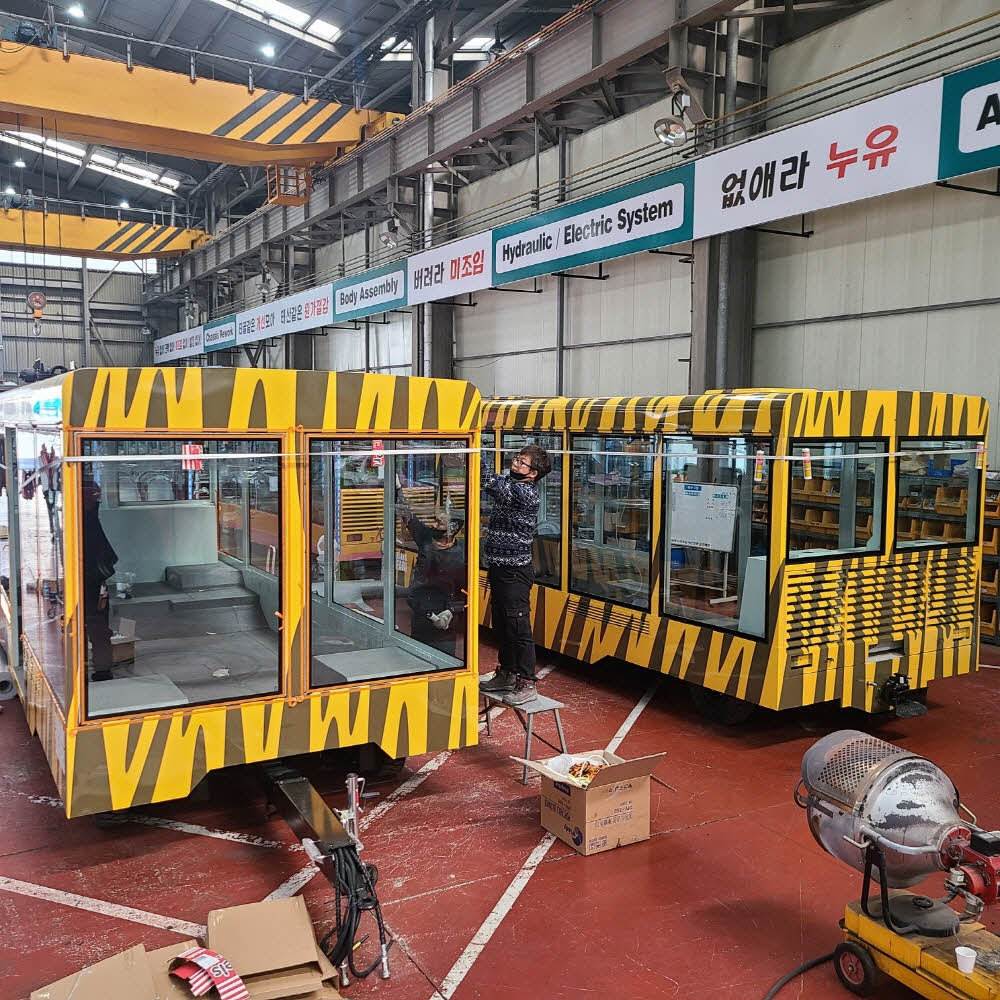

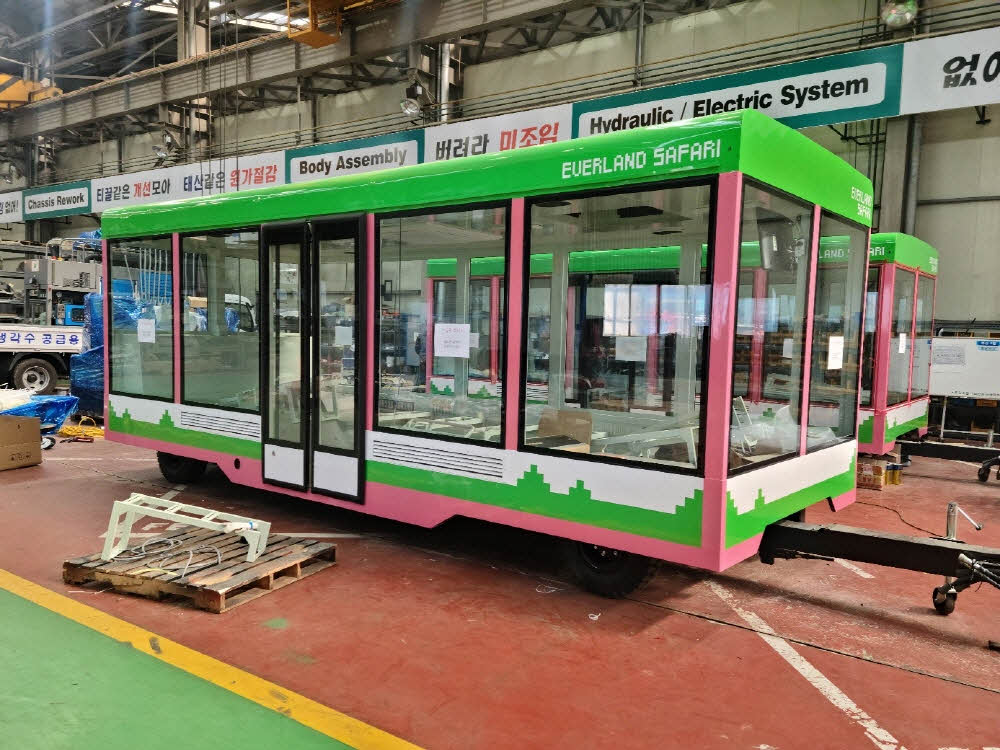

- EVERLAND Safari ferris wheel bulletproof glass – GP
- Excavator for removing anti-tank mines in Gangwon-do – PP
- Battery Factory Electric Forklift Bulletproof Pane l- PP

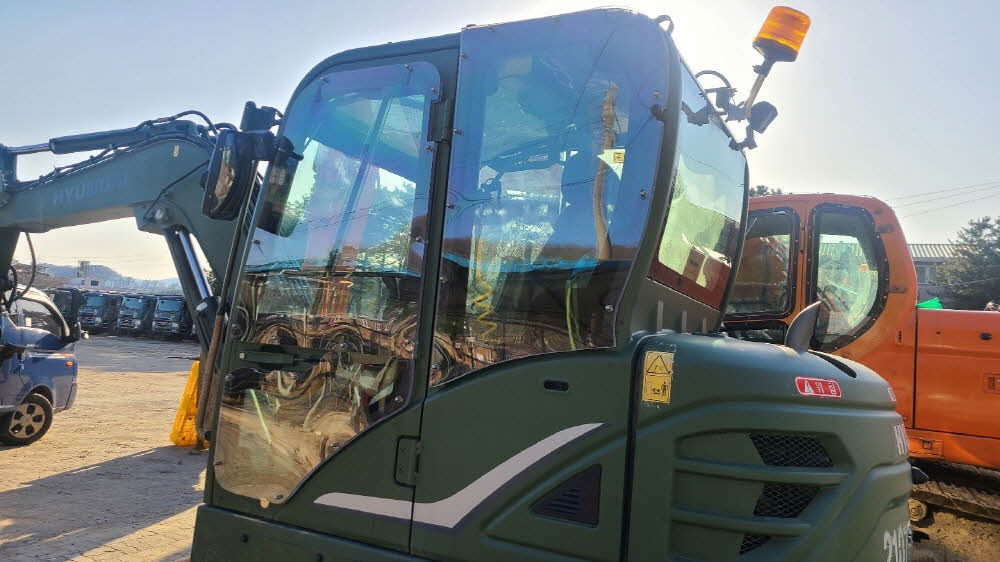

- Excavator bulletproof panel for rock crushing – PP
- Excavator bulletproof panel for mine removal – PP
- Many other discussions and ongoing
AEGISPEAR with HBC
Global Technology Transfer Program
A program that proceeds from plant establishment, production, and technology transfer of AEGISPEAR with HBC worldwide
- Conduct production management for production/distribution in the country and promote joint development of
new products suitable for the situation. - Introduction of qualification system for exclusive sales.
- Manpower input for initial facility and production/technology transfer production management.
- Active support from head office to strengthen competitiveness.
Please contact us by email (cjh2023@aegispear.com) for more information.
